Tiltorator Line
M5
Tilting rotator for excavators in the 20-26t weight class
Tilt rotators are an advantageous solution that allows a wide range of tasks to be performed with a single machine
enabling a new, more precise and efficient way of working.
Designed and built for the most complicated working conditions, without losing sight of the importance of weight for excavators of this size.
- 2-year warranty
- Centralized greasing as standard
- unlimited rotation
- 45° tilt
- Supplied factory assembled with quick coupler compatible with most quick couplers on the market such as S70,
- Safety valves on all cylinders as standard
- Can be supplied with Gripper
| Peso Macchina - Machine Weight (kg) | 19000-23000 |
|---|---|
| Peso (a partire da) - Weight from (kg) | 730 |
| Angolo tilt - Tilt Angle (2x) | 45° |
| Velocità di rotazione - Rotazione speed (giri/minuto) | 7 |
| Pressione di lavoro - Working Pressure (Mpa) | 21 |

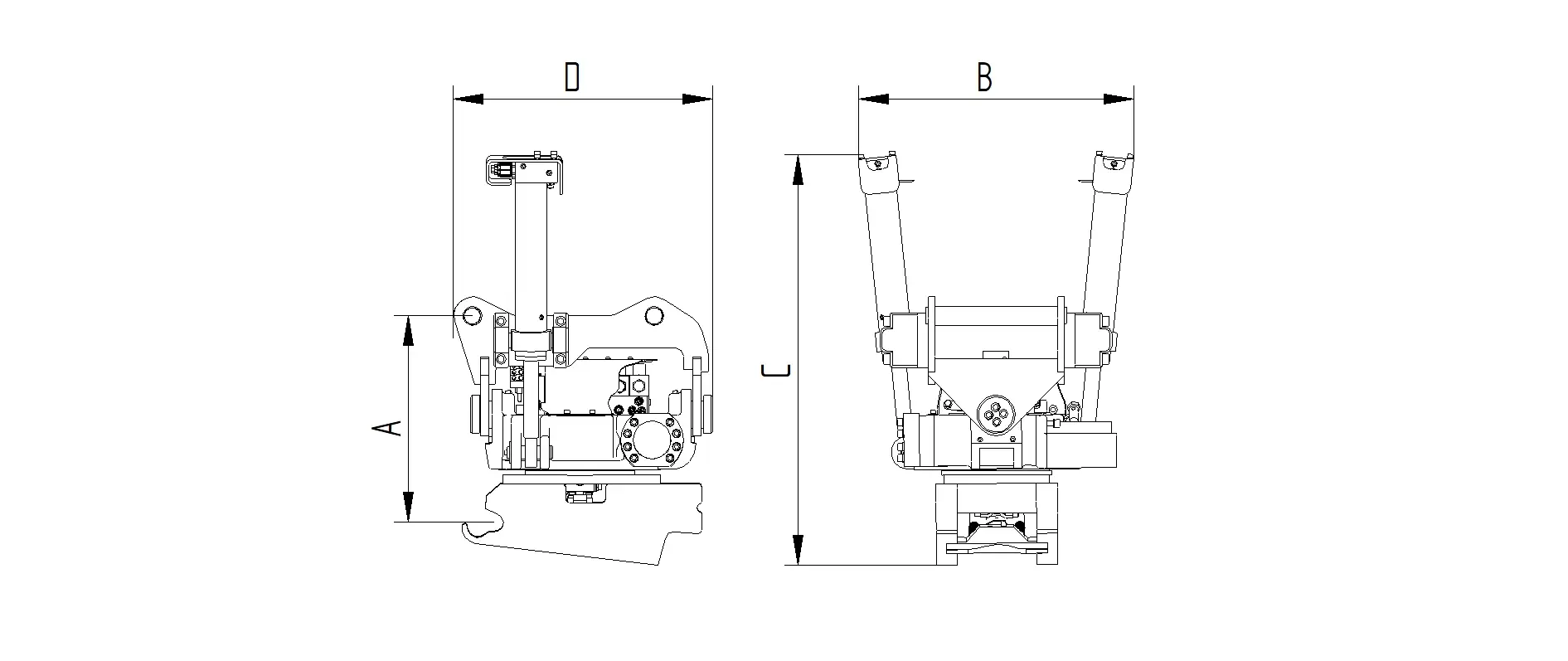

| Dimensione A* (mm) | |
| Dimensione B* (mm) | |
| Larghezza Benna massima mm, max Bucket Width (mm) | 1800 |
| Portate raccomandate,principale/rotazione | 70/70 |
*Wereserve the right to make changes without notice. Technical data may vary
